CCNA IPV6 router prtocol and informaction

IPv6

IPv6 is the newest version of internet protocol formulated by the IETF, which helps identify and local endpoint systems on a computer network and route online traffic while addressing the problem of IPv4 address depletion due to prolonged internet use worldwide

EIGRP

1. Router> enable

2. Router # configure terminal

3. Router (config) # ipv6 unicast-routing

4. Router (config) # interface type number

5. Router (config-if) # ipv6 enable

6. Router (config-if) # ipv6 eigrp as-number

7. Router (config-if) # no shutdown

8. Router (config-if) # router eigrp as-IPv6 number

9. Router (config-router) # router-id {ip-address | IPv6} Address

10. Router (config-router) # no shutdown

11. Router (config-router) # exit

12. Router (config) # exit

13. Router # copy run start LINE LINEBREAK linebreak linebreak Steps Explained:



hzr(config)#int s0/0

hzr(config-if)#ipv6 add fec0::12:1/112

hzr(config-if)#no shut

hzr(config-if)#ipv6 enable

hzr(config-if)#ipv6 eigrp 10



hzr(config)#int f0/0

hzr(config-if)#ipv6 add fec0::35:1/112

hzr(config-if)#no shut

hzr(config-if)#ipv6 enable

hzr(config-if)#ipv6 eigrp 10



hzr(config)#ipv6 unicast-routing



hzr(config)#ipv6 router eigrp 10

hzr(config-rtr)#router-id 2.2.2.2

hzr(config-rtr)#no shut



Same configure on Mumbai router only change as mention



mumb(config-rtr)#router-id 1.1.1.1

mumb(config-rtr)#no shut



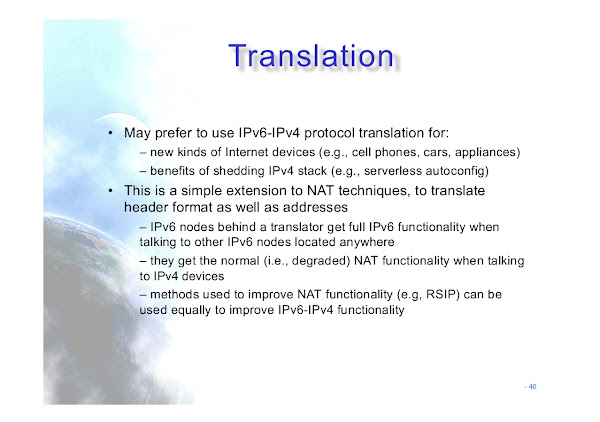

Types of IPV6 to IPV4 Tunnel

1)      Dual Stack

2)      Manual Tunnel

3)      Auto Tunnel



Dual Stack: We can assign ipv4 & ipv6 on same interface that is dual stack.

It is usually used for LAN only.



Manual Tunnel

R1#sh run

interface Serial0/0

 ip address 170.10.12.1 255.255.255.0

interface Serial0/1

 ip address 170.10.13.1 255.255.255.0



router eigrp 1

 network 170.10.0.0

 no auto-summary

!

R2#interface Tunnel0

 no ip address

 ipv6 address FEC0:23::2/112

 ipv6 rip 1 enable

 tunnel source 170.10.12.2

 tunnel destination 170.10.13.3

 tunnel mode ipv6ip

!

interface Serial0/0

 ip address 170.10.12.2 255.255.255.0

 serial restart-delay 0

 no dce-terminal-timing-enable



interface FastEthernet1/0

 no ip address

 duplex auto

 speed auto

 ipv6 address FEC0:24::2/112

 ipv6 rip 1 enable

!

router eigrp 1

 network 170.10.0.0

 no auto-summary

!

no ip http server

no ip http secure-server

ip classless

!

!

!

ipv6 router rip 1



R3#interface Tunnel0

 no ip address

 ipv6 address FEC0:23::3/112

 ipv6 rip 1 enable

 tunnel source 170.10.13.3

 tunnel destination 170.10.12.2

 tunnel mode ipv6ip

!

interface Serial0/0

 ip address 170.10.13.3 255.255.255.0

 serial restart-delay 0

 no dce-terminal-timing-enable



interface FastEthernet1/0

 no ip address

 duplex auto

 speed auto

 ipv6 address FEC0:35::3/112

 ipv6 rip 1 enable

!

router eigrp 1

 network 170.10.0.0

 no auto-summary

ipv6 router rip 1



R4#interface Loopback0

 no ip address

 ipv6 address FEC0:4::4/112

 ipv6 rip 1 enable

!

interface FastEthernet0/0

 no ip address

 duplex auto

 speed auto

 ipv6 address FEC0:24::4/112

 ipv6 rip 1 enable

ipv6 router rip 1



R5#interface Loopback0

 no ip address

 ipv6 address FEC0:5::5/112

 ipv6 rip 1 enable

!

interface FastEthernet0/0

 no ip address

 duplex auto

 speed auto

 ipv6 address FEC0:35::5/112

 ipv6 rip 1 enable

ipv6 router rip 1





Verification Command:

R2#sh run | sec int tunnel 0

If there is problem with tunnel then use mention tunnel related issue.



#sh run int s0/0

#sh int s0/0

Verify that tunnel is up or down.



OSPF



OSPFV3

RIP port = 521

Ospfv2 protocol no:89

Eigrp Protocol no:88



R1(config)#ipv6 unicast-routing

R1(config)#int s0/0

R1(config-if)#ipv6 ospf 1 area 0

R1(config)#ipv6 router ospf 1

R1(config-rtr)#router-id 1.1.1.1

R1(config)#exit

R1(config)#int  s0/0

R1(config-if)#ipv6 ospf 1 area 0

R1(config-if)#exit

R1(config)#int s0/1

R1(config-if)#ipv6 ospf 1 area 0

R1(config-if)#exit

R1(config)#int lo 0

R1(config-if)#ipv6 ospf 1 area 0

R1(config-if)#exit



Same configure on R2 to R5 and take care with area nos.



Done….smile.



RIP



On R1:



conf t

hostname R1

int s0/0

ipv6 address fec0:12::1/112

no  shut

exit

int f1/0

ipv6 address fec0:14::1/112

no  shut

exit

end



On R2:



conf t

hostname R2

int s0/0

ipv6 address fec0:12::2/112

no  shut

exit

int s0/1

ipv6 address fec0:23::2/112

no  shut

exit

end



On R3:



conf t

hostname R3

int s0/0

ipv6 address fec0:23::3/112

no  shut

exit

int f1/0

ipv6 address fec0:35::3/112

no  shut

exit

end





On R4:



conf t

hostname HOST-1

int f1/0

ipv6 address fec0:14::4/112

no  shut

exit



On R5:



conf t

hostname HOST-2

int f1/0

ipv6 address fec0:35::5/112

no  shut

end







====================================



Configure RIPng:



on R1:



conf t

ipv6 unicast-routing

int s0/0

ipv6 rip 1 enable

exit

int f1/0

ipv6 rip 1 enable

exit

ipv6 router rip 1



On R2:

conf t

ipv6 unicast-routing

int s0/0

ipv6 rip 1 enable

exit

int s0/1

ipv6 rip 1 enable

exit

ipv6 router rip 1



On R3:

conf t

ipv6 unicast-routing

int s0/0

ipv6 rip 1 enable

exit

int f1/0

ipv6 rip 1 enable

exit

ipv6 router rip 1





ALL

ripng



r1(config)#ipv6 router rip 1

r1(config)#int s0/0

r1(config-if)#ipv6 rip 1 enable





eigrpv6

r1(config)#ipv6 router eigrp 1

r1(config-rtr)#router-id 1.1.1.1

r1(config)#int s0/0

r1(config-if)#ipv6 eigrp 1 enable



ospfv3

r1(config)#ipv6 router ospf 1

r1(config-rtr)#router-id 1.1.1.1

r1(config)#int s0/0

r1(config-if)#ipv6 ospf 1 area 0



R1:

en

config t

int s0/0

ip add 170.10.12.1 255.255.255.0

no shut

exit

int s0/1

ip add 170.10.13.1 255.255.255.0

no shut

exit

router eigrp 100

network 170.10.0.0

no auto-summary

exit

R2:

en

config t

int s0/0

ip add 170.10.12.2 255.255.255.0

no shut

exit



router eigrp 100

network 170.10.0.0

no auto-summary

exit

R3:

en

config t

int s0/0

ip add 170.10.13.3 255.255.255.0

no shut

exit

router eigrp 100

network 170.10.0.0

no auto-summary

exit

____________________________

IPV6 on R2:

en

config t

  ipv6 unicast-routing

 int f1/0

  ipv6 address fec0:24::2/112

  ipv6 rip 1 enable

no shut

  exit

R3:

en

config t

  ipv6 unicast-routing

 int f1/0

  ipv6 address fec0:35::3/112

  ipv6 rip 1 enable

no shut

  exit

R4:

 ipv6 unicast-routing

  int f0/0

  ipv6 address fec0:24::4/112

  ipv6 rip 1 enable

  no shut

  exi

  int loopback 0

  ipv6 address fec0:4::4/112

  ipv6 rip 1 enable

  exit

R5:

 ipv6 unicast-routing

  int f0/0

  ipv6 address fec0:35::5/112

  ipv6 rip 1 enable

  no shut

  exi

  int loopback 0

  ipv6 address fec0:5::5/112

  ipv6 rip 1 enable

  exit

__________________________________________________

Tunnel Configuration on R2:

R2:

en

config t

 int tunnel 0

  tunnel source s0/0

  tunnel destination 170.10.13.3

  tunnel mode ipv6ip

ipv6 rip 1 enable

  ipv6 address fec0:23::2/112

  exit

R3:

en

config t

 int tunnel 0

  tunnel source s0/0

  tunnel destination 170.10.12.2

  tunnel mode ipv6ip

  ipv6 address fec0:23::3/112

ipv6 rip 1 enable

  exit





for testing :

R4:

R4#ping fec0:5::5 source loopback 0

R5:

R5#ping fec0:4::4 source loopback 0

R2:

R2#sh int tunnel 0















EIGRP

hzr#sh run



hostname hzr



ipv6 unicast-routing



interface FastEthernet0/0

 no ip address

 duplex auto

 speed auto

 ipv6 address FEC0::35:1/112

 ipv6 enable

 ipv6 eigrp 10





interface Serial1/0

 no ip address

 ipv6 address FEC0::12:1/112

 ipv6 enable

 ipv6 eigrp 10

 serial restart-delay 0



ipv6 router eigrp 10

 router-id 2.2.2.2

 no shutdown



hzr#





mum#sh run

hostname mum



ipv6 unicast-routing



interface FastEthernet0/0

 no ip address

 duplex auto

 speed auto

 ipv6 address FEC0::23:1/112

 ipv6 enable

 ipv6 eigrp 10



interface Serial1/0

 no ip address

 ipv6 address FEC0::12:2/112

 ipv6 enable

 ipv6 eigrp 10

 serial restart-delay 0

ipv6 router eigrp 10

 router-id 1.1.1.1

 no shutdown



mum#













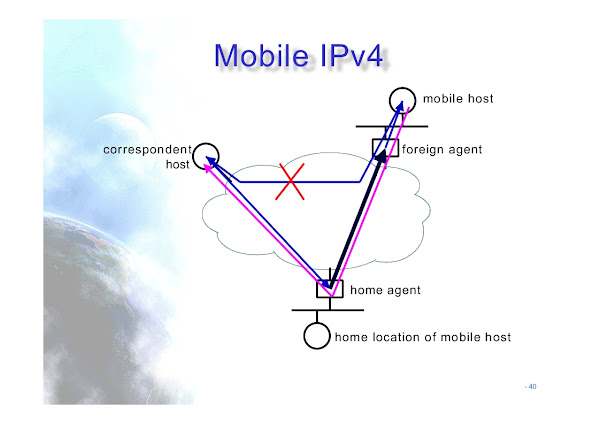

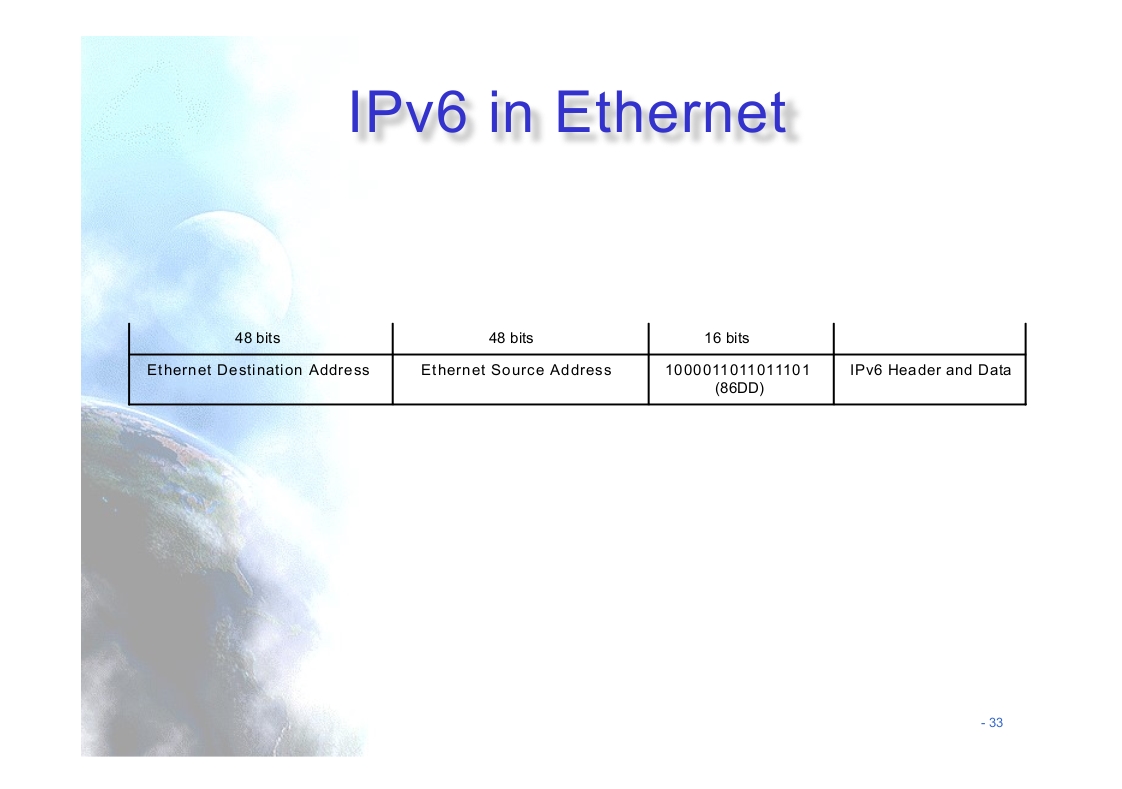

IPV6

1970 ipv4 developed.

DoD developed. ARPANET known.

1992 ipv6 introduce.

Security inbuit in ipv6(header level)



Ipv6 forum….explore it…….



Oct2010 ipv4 pool is finished.

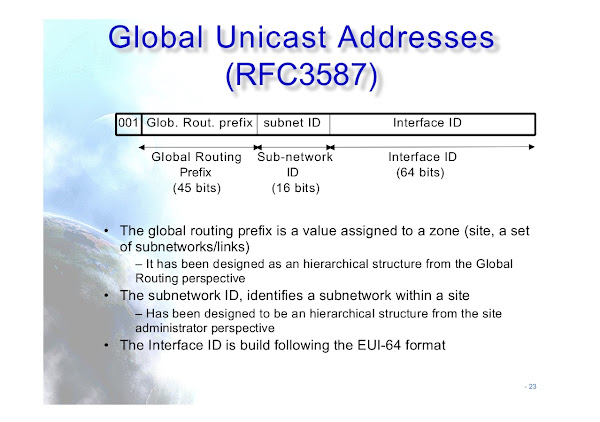

2000::/3

2 means 001000000000::0000===2000

                001100000000::0000===3fff:ffff:…..



Unassigned add-à  ::/0

Loopback addà ::1

Ipv6 to ipv4 communication à 2002::/16

Multicast à ff00::/16



Ipv6  address assigned method:

1)      Manaual – static address

EUI – 64 bits Method (Extendable user interface)

2)      Auto Configuration – stateless autoconfig

         Stateful autoconfig



How to Stop ND (network Discovery)

To stop ND process in ipv6

R1(config)#int fa0/0

R1(config)#ipv6 nd suppress-ra















==





To view ipv6 address assigned to interfaces

#sh ipv6 int brief



To view the ipv6 routing table

#sh ipv6 route



Whenever you assign the ip address to any perticaular interface than first "no shut"

the fast ethernet.



because of the fastethernet,link-local address will be generated.

#int f1/0

#no ip add

#no shut

#exit

#int s0/0

#ipv6 add fec0::12:1/112

#no shut

#exit

#sh ipv6 int brief
